Description

The STR-Y6400 series products are power ICs for quasi-resonant switching type power supplies, incorporating a power MOSFET and a controller IC.

Features

  • s TO-220F-7 Multi-Mode Control The operation mode switching with four steps according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full load range. In Standby: Auto Standby (Auto Burst-Oscillation) Under Low to Middle Load Conditions: 1 or 2 Bottom-Skip Quasi-Resonant Operation (Bottom-Skip QR) Under Middle to Rating (or Heavy) Load Conditions: Quasi-Resonant Operation (QR) Current-Mode Control Bottom-Skip Function with Delay Time Settin.

📥 Download Datasheet

Datasheet preview – STR-Y6400

Datasheet Details

Part number STR-Y6400
Manufacturer Sanken
File Size 256.61 KB
Description Power IC
Datasheet download datasheet STR-Y6400 Datasheet
Additional preview pages of the STR-Y6400 datasheet.

📁 Similar Datasheet

  • STR-Y6753 - Off-Line Quasi-Resonant Switching Regulators (Allegro)
  • STR-Y6755 - Off-Line Quasi-Resonant Switching Regulators (Allegro)
  • STR-4A60S - Sensitive Gate Triacs (SemiWell Semiconductor)
  • STR-4A60S - Sensitive Gate Triacs (TGS)
  • STR-50115 - STR50115 (ETC)
  • STR-50330 - Hybrid IC Voltage Regulator (Sanken electric)
  • STR-53041 - Hybrid IC Voltage Regulator (Sanken electric)
  • STR-54041 - Hybrid IC Voltage Regulator Module (Sanken electric)
  • STR-A27 - Stereo FM-AM Receiver Service Manual (Sony)
  • STR-A6000H - STR-A6000H Series PWM Off-Line Switching Regulator ICs (Sanken Electric)
Other Datasheets by Sanken
  • STR-Y6453 - Power IC for Quasi-Resonant Type Switching Power Supply
  • STR-Y6456 - Power IC
  • STR-Y6456 - Power IC for Quasi-Resonant Type Switching Power Supply
  • STR-Y6473 - Power IC
  • STR-Y6473 - Power IC for Quasi-Resonant Type Switching Power Supply
  • STR-Y6476 - Power IC
  • STR-Y6476 - Power IC for Quasi-Resonant Type Switching Power Supply
  • STR-Y6700 - Quasi-Resonant Controllers

Full PDF Text Transcription

Click to expand full text

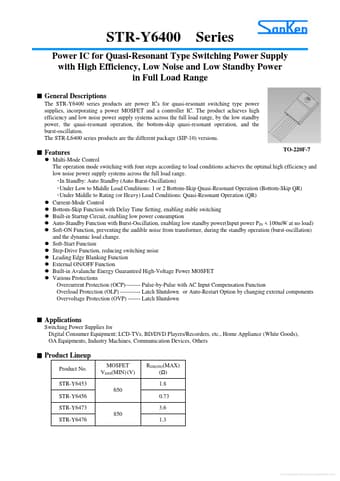

STR-Y6400 Series Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency, Low Noise and Low Standby Power in Full Load Range ■ General Descriptions The STR-Y6400 series products are power ICs for quasi-resonant switching type power supplies, incorporating a power MOSFET and a controller IC. The product achieves high efficiency and low noise power supply systems across the full load range, by the low standby power, the quasi-resonant operation, the bottom-skip quasi-resonant operation, and the burst-oscillation. The STR-L6400 series products are the different package (SIP-10) versions.
