STR-Y6456 - Power IC for Quasi-Resonant Type Switching Power Supply

Description

The STR-Y6456 is power IC for quasi-resonant switching type power supplies, incorporating a power MOSFET and a controller IC.

Features

  • Multi operation mode The operation mode switching with four steps according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full range of loads.
  • Current mode control method.
  • The built-in startup circuit reduces the power consumption.
  • Auto burst oscillation operation reduces dissipation. Input power PIN ≤ 0.1W at no load.
  • Standby input compensation.
  • Overcurrent protection with AC input compensation function.

📥 Download Datasheet

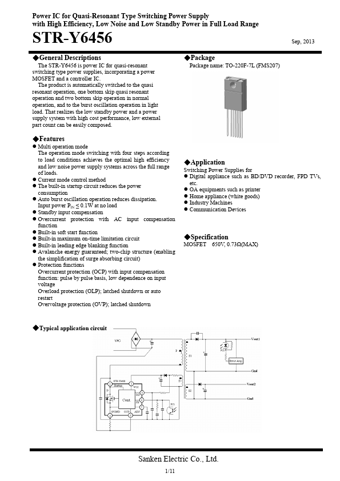

Datasheet preview – STR-Y6456
