STR3W422MXD - Off-Line PWM Controllers

Sanken

📥 Download Datasheet

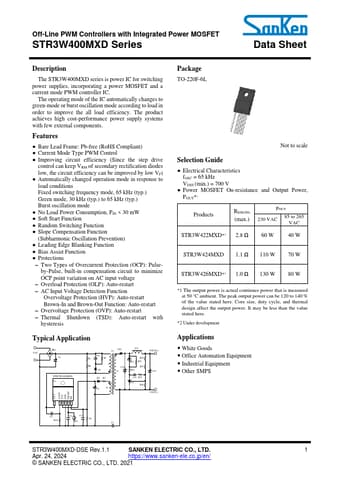

STR3W422MXD Datasheet Preview — Preview of STR3W422MXD PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STR3W422MXD
Manufacturer	Sanken ↗
File Size	488.98 KB
Description	Off-Line PWM Controllers
Datasheet	STR3W422MXD-Sanken.pdf

STR3W422MXD Product details

Description

The STR3W400MXD series is power IC for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

Features

Bare Lead Frame: Pb-free (RoHS Compliant).
Current Mode Type PWM Control.
Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF).
Automatically changed operation mode in response to load conditions Fixed switching frequency mode, 65 kHz (typ. ) Green mode, 30 kHz (typ. ) to 65 kHz (typ. ) Burst oscillation mode.
No Load Power Consumption, PIN < 30 mW.
Soft Start F.
