STR6A161HZ - Off-Line PWM Controller

Product Overview

Sanken

Part number	STR6A161HZ
Manufacturer	Sanken
File Size	580.08 KB
Description	Off-Line PWM Controller
Datasheet	STR6A161HZ Datasheet
Note	This datasheet PDF includes multiple part numbers: STR6A161HZ, STR6A169HZ. Please refer to the document for exact specifications by model.

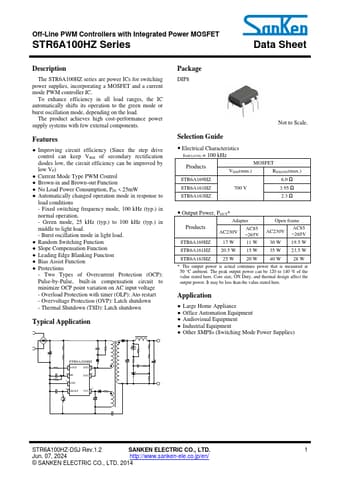

Additional preview pages of the STR6A161HZ datasheet.

The STR6A100HZ series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF).
Current Mode Type PWM Control.
Brown-in and Brown-out Function.
No Load Power Consumption, PIN < 25mW.
Automatically changed operation mode in response to load conditions - Fixed switching frequency mode, 100 kHz (typ. ) in normal operation. - Green mode, 25 kHz (typ. ) to 100 kHz (typ. ) in middle to light load.
