STRW6754, STR-W6754 Datasheet - Sanken

STRW6754, STR-W6754, Universal-Input/100 W Off-Line QuasiResonant Flyback Switching Regulator

STR-W6754 Quasi-Resonant Topology Primary Switching Regulators .
The STR-W6754 is a quasi-resonant topology IC designed for SMPS applications.

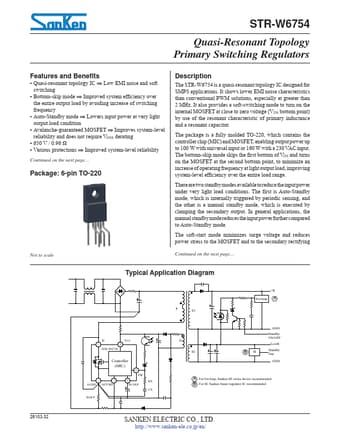

datasheet Preview Page 1 from Datasheet4u.com

STR-W6754-Sanken.pdf

STRW6754 Datasheet Preview — This datasheet PDF includes multiple part numbers: STRW6754, STR-W6754. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STRW6754, STR-W6754

Manufacturer:

Sanken ↗

File Size:

175.27 KB

Description:

Universal-Input/100 W Off-Line QuasiResonant Flyback Switching Regulator

Note:

This datasheet PDF includes multiple part numbers: STRW6754, STR-W6754.
Please refer to the document for exact specifications by model.

Features

* ▪ Quasi-resonant topology IC  Low EMI noise and soft switching ▪ Bottom-skip mode  Improved system efficiency over the entire output load by avoiding increase of switching frequency ▪ Auto-Standby mode  Lowers input power at very light output load condition ▪ Avalanche-guaranteed MOSFET  Improve
