9G1212G401 Datasheet - Sanyo Denki

9G1212G401 DC Fan

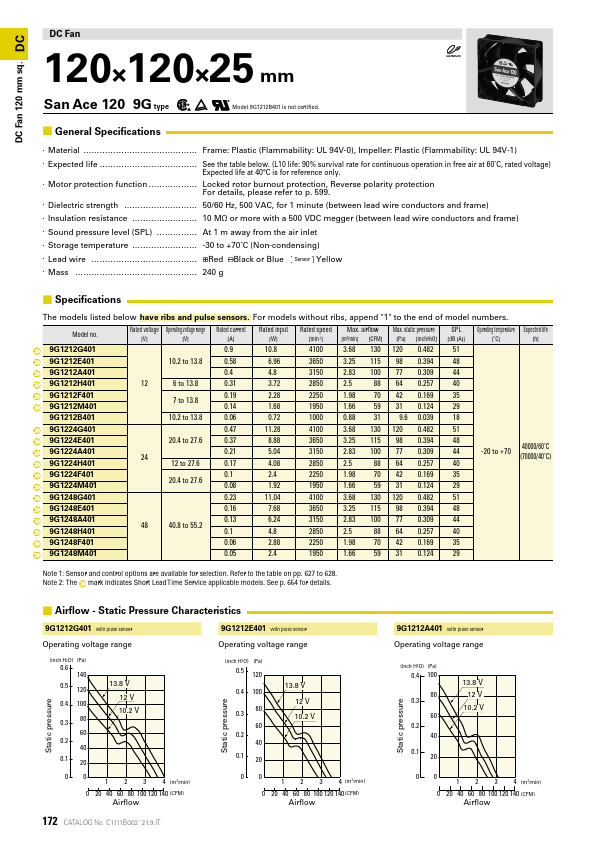

DC Fan 120 mm sq. DC DC Fan 120×120×25 mm San Ace 120 9G type Model 9G1212B401 is not certified. General Specifications Material……………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1) Expected life………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only. Motor protection function………………… Locked rotor burnout protect.

9G1212G401-SanyoDenki.pdf
