9G1224F401, 9G1212G401 Datasheet - Sanyo Denki

9G1224F401 DC Fan

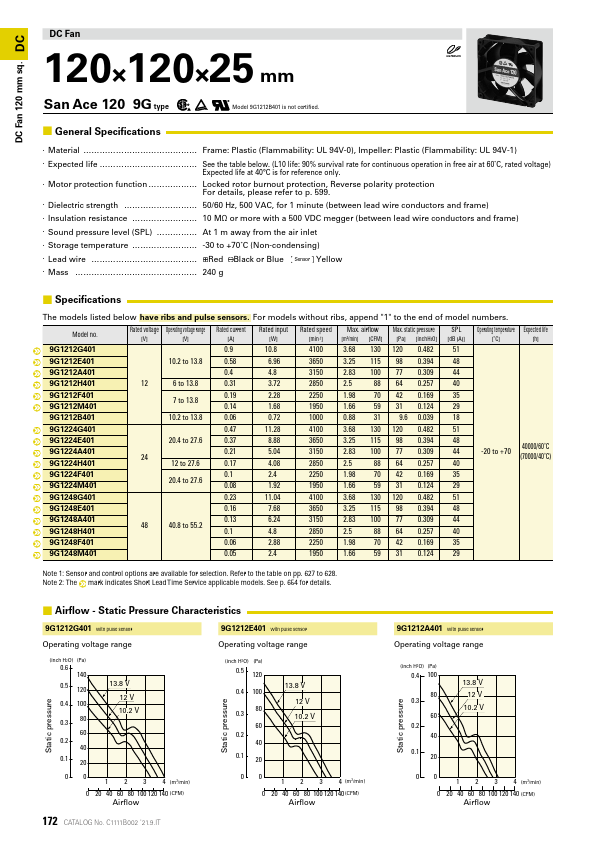

DC Fan 120 mm sq. DC DC Fan 120×120×25 mm San Ace 120 9G type Model 9G1212B401 is not certified. General Specifications Material……………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1) Expected life………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only. Motor protection function………………… Locked rotor burnout protect.

9G1212G401-SanyoDenki.pdf

This datasheet PDF includes multiple part numbers: 9G1224F401, 9G1212G401. Please refer to the document for exact specifications by model.

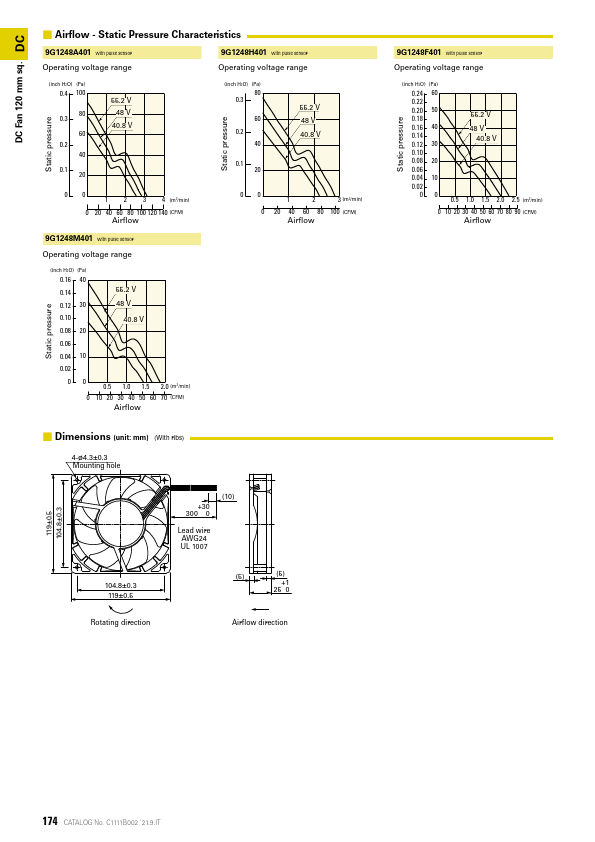

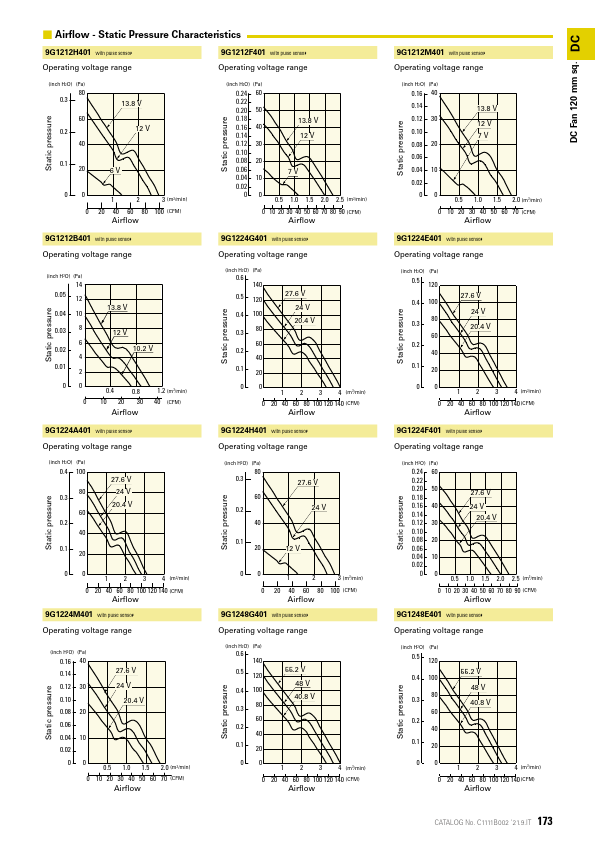

9G1224F401 Datasheet Preview Page 2 9G1224F401 Datasheet Preview Page 3

Datasheet Details

Part number:

9G1224F401, 9G1212G401

Manufacturer:

Sanyo Denki

File Size:

254.10 KB

Description:

Dc fan.

Note:

This datasheet PDF includes multiple part numbers: 9G1224F401, 9G1212G401.
Please refer to the document for exact specifications by model.
