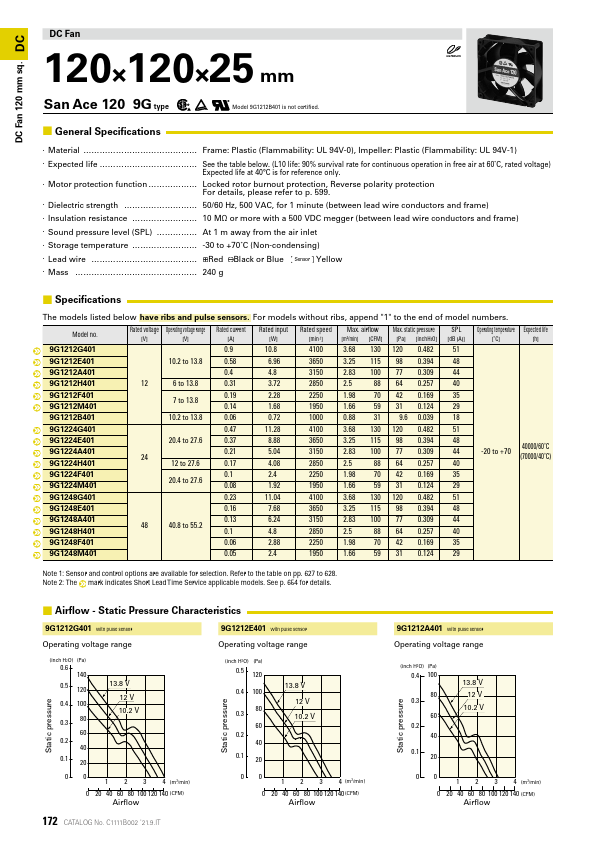

9G1248F401
DC Fan 120 mm sq. DC
DC Fan
120×120×25 mm
San Ace 120 9G type
Model 9G1212B401 is not certified.
- General Specifications
- Material……………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
- Expected life………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
Expected life at 40°C is for reference only.
- Motor protection function………………… Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 599.
- Dielectric strength………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
- Insulation resistance……………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
- Sound pressure level (SPL)……………… At 1 m away from the air inlet
- Storage temperature……………………… -30 to +70˚C (Non-condensing)
- Lead wire…………………………………… Red Black or Blue Sensor Yellow
- Mass………………………………………… 240 g
-...
