9GA0924P4J03, 9GA0912P4J03 Datasheet - Sanyo Denki

9GA0924P4J03 DC Fan

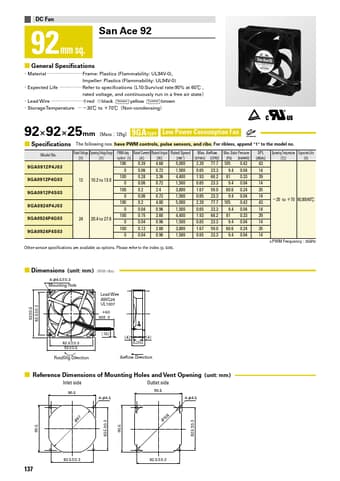

DC Fan 92mm sq. San Ace 92 General Specifications Material……………………Frame: Plastics (Flammability: UL94V-0), Impeller: Plastics (Flammability: UL94V-0) Expected Life ……………Refer to specifications（L10:Survival rate:90% at 60℃ , rated voltage, and continuously run in a free air state） Lead Wire …………………⊕red ⊖black Sensor yellow Control brown StorageTemperature …－30℃ to ＋70℃（Non-condensing） 92 92 25× × 9GAmm 〔Mass：125g〕 type Low Power Consumption Fan Specifications The following nos.

9GA0912P4J03-sanyodenki.pdf

This datasheet PDF includes multiple part numbers: 9GA0924P4J03, 9GA0912P4J03. Please refer to the document for exact specifications by model.
9GA0924P4J03 Datasheet Preview Page 2 9GA0924P4J03 Datasheet Preview Page 3

Datasheet Details

Part number:

9GA0924P4J03, 9GA0912P4J03

Manufacturer:

Sanyo Denki

File Size:

266.84 KB

Description:

Dc fan.

Note:

This datasheet PDF includes multiple part numbers: 9GA0924P4J03, 9GA0912P4J03.
Please refer to the document for exact specifications by model.
