LA76936Y Datasheet - Sanyo Electric

LA76936Y CTV Microcontroller Video and Sound Processor

Ordering number : ENA1102A Monolithic Linear IC LA7693X Series Overview For NTSC/PAL/SECAM Color TVs Built-in CTV Microcontroller Video and Sound Processing ICs (VIF/SIF/Y/C/Deflection/CbCr IN) The LA7693X series is a single-chip video and sound processor IC with a built-in microcontroller that supports all of the different worldwide broadcasting systems. The IC provides fully integrated solution to rationalize the design of color TV sets, increase productivity, and reduce total costs. Fun.

LA76936Y Datasheet (138.84 KB)

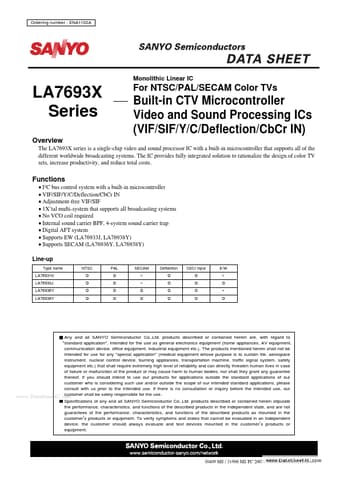

Preview of LA76936Y PDF
LA76936Y Datasheet Preview Page 2 LA76936Y Datasheet Preview Page 3

Datasheet Details

Part number:

LA76936Y

Manufacturer:

Sanyo Electric

File Size:

138.84 KB

Description:

Ctv microcontroller video and sound processor.
