STK404-090S - One-Channel Class AB Audio Power Amplifier IC 50W

Datasheet Summary

Features

  • Series of pin compatible power amplifiers ranging from 45W to 180W (10%/1kHz) devices. The same printed circuit board can be used depending on the output power grade.
  • Miniature packages.
  • 30W to 40W (THD=0.4%, f=20Hz to 20kHz); 44.0mm × 25.6mm × 8.5mm.
  • 50W to 80W (THD=0.4%, f=20Hz to 20kHz); 46.6mm × 25.5mm × 8.5mm.
  • 100W to 120W (THD=0.4%, f=20Hz to 20kHz); 59.2mm × 25.5mm × 8.5mm.
  • : Not including the pins.
  • Output load.

📥 Download Datasheet

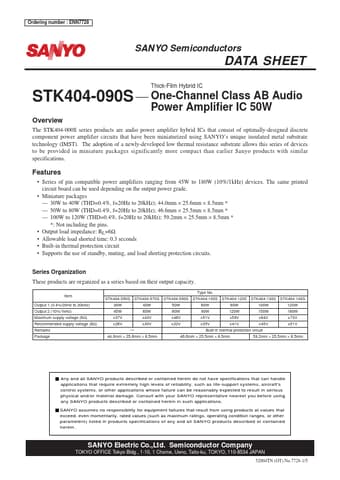

Datasheet preview – STK404-090S

Datasheet Details

Part number STK404-090S
Manufacturer Sanyo Electric
File Size 56.91 KB
Description One-Channel Class AB Audio Power Amplifier IC 50W
Datasheet download datasheet STK404-090S Datasheet
Additional preview pages of the STK404-090S datasheet.

📁 Similar Datasheet

  • STK404-050S - One-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK404-070 - One-Channel Class AB Audio Power Amplifier IC (Sanyo)
  • STK404-070N-E - 1ch class-AB Audio Power IC (Sanyo)
  • STK404-070N-E - 1ch class-AB Audio Power IC (ON Semiconductor)
  • STK404-100S - One-Channel Class AB Audio Power Amplifier IC (Sanyo)
  • STK404-100SC-E - 1-channel class AB audio power IC (Sanyo)
  • STK404-120 - One-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK404-120N-E - 1ch class-AB Audio Power (ON Semiconductor)
  • STK404-120S - One-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK404-130 - One-Channel Class AB Audio Power Amplifier IC (Sanyo Semiconductor Corporation)
Other Datasheets by Sanyo Electric

Full PDF Text Transcription

Click to expand full text
Ordering number : ENN7728 SANYO Semiconductors DATA SHEET Thick-Film Hybrid IC STK404-090S Overview One-Channel Class AB Audio Power Amplifier IC 50W The STK404-000S series products are audio power amplifier hybrid ICs that consist of optimally-designed discrete component power amplifier circuits that have been miniaturized using SANYO’s unique insulated metal substrate technology (IMST). The adoption of a newly-developed low thermal resistance substrate allows this series of devices to be provided in miniature packages significantly more compact than earlier Sanyo products with similar specifications. Features • Series of pin compatible power amplifiers ranging from 45W to 180W (10%/1kHz) devices. The same printed circuit board can be used depending on the output power grade.
