2SC3902 - PNP/NPN Transistors

Datasheet Summary

Features

  • High breakdown voltage.
  • Large current capacity.
  • Adoption of FBET and MBIT process.
  • The plastic-covered heat sink eliminates the need for an insulator when mounting the 2SA1507/2SC3902. Package Dimensions unit:mm 2042B [2SA1507/2SC3902] ( ) : 2SA1507 Specifications 1 : Emitter 2 : Collector 3 : Base SANYO : TO-126ML Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current.

📥 Download Datasheet

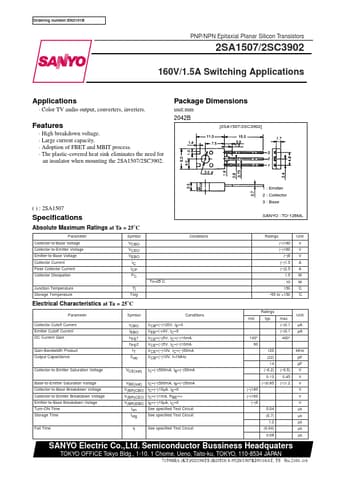

Datasheet preview – 2SC3902
