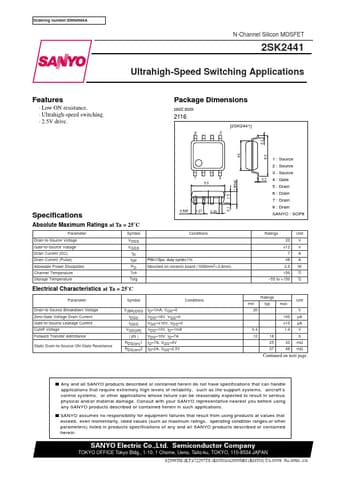

2SK2441
Features
- Low ON resistance.
- Ultrahigh-speed switching.
- 2.5V drive.
Package Dimensions unit:mm 2116
[2SK2441] 85
0.1 1.5 1.8max 4.4 0.3 6.0
1 5.0
Specifications
Absolute Maximum Ratings at Ta = 25˚C
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature Storage Temperature
Symbol
VDSS VGSS
ID IDP PD Tch
Tstg
Electrical Characteristics at Ta = 25˚C
0.595 1.27 0.43
Conditions
PW≤10µs, duty cycle≤1% Mounted on ceramic board (1000mm2× 0.8mm)
Parameter
Drain-to-Source Breakdown Voltage Zero-Gate Voltage Drain Current Gate-to-Source Leakage Current Cutoff Voltage Forward Transfer Admittance
Static Drain-to-Source ON-State Resistance
Symbol
Conditions
V(BR)DSS IDSS IGSS
VGS(off) | yfs |
RDS(on)1 RDS(on)2
ID=1m A, VGS=0 VDS=16V, VGS=0 VGS=±10V, VDS=0 VDS=10V, ID=1m A VDS=10V, ID=7A ID=7A, VGS=4V ID=2A, VGS=2.5V
1 : Source 2 : Source 3 : Source 0.2 4 : Gate 5 : Drain 6 : Drain 7 :...
