50A02CH

Low-Frequency General-Purpose Amplifier Applications

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi 50A02CH-TL-E TRANS PNP 50V 0.5A 3-CPH DigiKey 9558 1000 units
$0.16

50A02CH Datasheet (59.47 KB)

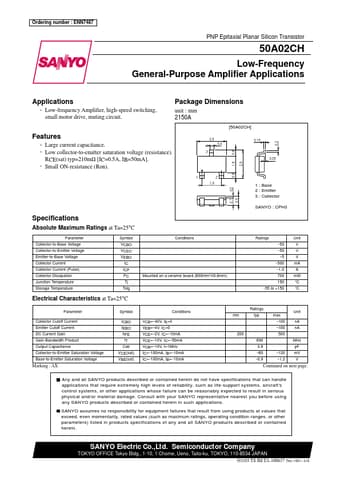

Preview of 50A02CH PDF Datasheet

Datasheet Details

Part number:

50A02CH

Manufacturer:

Sanyo Semicon Device

File Size:

59.47 KB

Description:

Low-frequency general-purpose amplifier applications

50A02CH Features

* Large current capacitance. Low collector-to-emitter saturation voltage (resistance). RCE(sat) typ=210mΩ [IC=0.5A, IB=50mA]. Small ON-resistance (Ron). 1 0.4 0.6 3 0.05 1.6 2.8 2 1.9 0.6 0.7 0.9 1 : Base 2 : Emitter 3 : Collector SANYO : CPH3 Specifications Abs
