50C02SS - N-Channel MOSFET

Name: 50C02SS
SKU: 50C02SS-708887

Sanyo Semicon Device

The 50C02SS by Sanyo Semicon Device is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	50C02SS
Manufacturer	Sanyo Semicon Device
File Size	96.32 KB
Description	N-Channel MOSFET
Datasheet	50C02SS_SanyoSemiconDevice.pdf

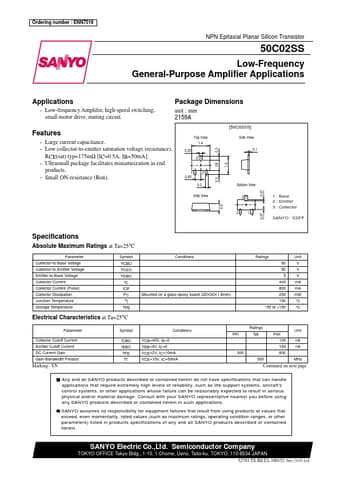

Additional preview pages of the 50C02SS datasheet.

0.3.
Large current capacitance. Low collector-to-emitter saturation voltage (resistance). RCE(sat) typ=175mΩ [IC=0.5A, IB=50mA]. Ultrasmall package facilitates miniaturization in end products. Small ON-resistance (Ron). Top View 1.4 0.3 Side View 0.1 0.25 3 0.8 1 0.45 0.2 2 Bottom View 0.07 0.07 1.4 Side View 0.6 3 1 : Base 2 : Emitter 3 : Collector SANYO : SSFP 2 1 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-B.
