A1798 Datasheet - Sanyo Semicon Device

A1798, 2SA1798

Ordering number:EN3709 .

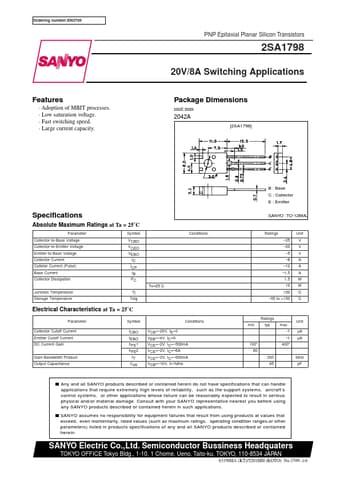

datasheet Preview Page 1 from Datasheet4u.com

A1798-SanyoSemiconDevice.pdf

A1798 Datasheet Preview — Preview of A1798 PDF

Datasheet Details

Part number:

A1798

Manufacturer:

Sanyo Semicon Device

File Size:

98.59 KB

Description:

2SA1798

Features

* Adoption of MBIT processes.
* Low saturation voltage.
* Fast switching speed.

Applications

* Package Dimensions unit:mm 2042A [2SA1798] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Colletor Current (Pulse) Base Current Collector Dissipation Symbol VCBO VCEO VEBO IC ICP IB P
