ALP230CXX - Low-Temperature Polysilicon 2.0-inch TFT LCD Module

Datasheet Summary

Features

  • Diagonal 5.1cm (2.0inch) display size.
  • 557 × 234 = 130,338 dots.
  • RGB delta color arrangement.
  • Operating temperature (panel) is -10 to +60°C. Ambient temperature during storage is -20 to +70°C.
  • Slim design, light weight and narrow frame. (t=0.7mm glass).
  • Up / down and right / left inverse function.
  • Built-in level shifter circuit.
  • Conform to NTSC, PAL when using recommended IC : LV4127W, LV4135W, LV4137W, (LV4139W : Und.

📥 Download Datasheet

Datasheet preview – ALP230CXX

Datasheet Details

Part number ALP230CXX
Manufacturer Sanyo Semicon Device
File Size 642.24 KB
Description Low-Temperature Polysilicon 2.0-inch TFT LCD Module
Datasheet download datasheet ALP230CXX Datasheet
Additional preview pages of the ALP230CXX datasheet.

📁 Similar Datasheet

  • ALP20 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A101BB400 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A102DE250 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A103DD040 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A103DE063 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A153DF063 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A222AB040 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A222BB063 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A332CB063 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
  • ALP20A471DF450 - Pin/Solder Tag/Audio Aluminum Electrolytic Capacitors (Kemet)
Other Datasheets by Sanyo Semicon Device
  • ALP230CCX - Low-Temperature Polysilicon 2.0-inch TFT LCD Module
  • ALP230CGX - Low-Temperature Polysilicon 2.0-inch TFT LCD Module
  • ALP234FCX - Low-Temperature Polysilicon 2.5-inch TFT LCD Module
  • ALP234FXX - Low-Temperature Polysilicon 2.5-inch TFT LCD Module
  • ALP236FCX - Low-Temperature Polysilicon 2.5-inch TFT LCD Module
  • ALP236FXX - Low-Temperature Polysilicon 2.5-inch TFT LCD Module
  • ALP237FAX - Low-Temperature Polysilicon 1.8-inch TFT LCD Module
  • ALP237FXX - Low-Temperature Polysilicon 1.8-inch TFT LCD Module

Full PDF Text Transcription

Click to expand full text

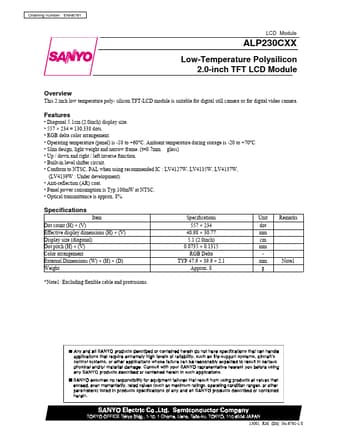

Ordering number : ENN6761 LCD Module ALP230CXX Low-Temperature Polysilicon 2.0-inch TFT LCD Module Overview This 2 inch low temperature poly- silicon TFT-LCD module is suitable for digital still camera or for digital video camera. Features • Diagonal 5.1cm (2.0inch) display size. • 557 × 234 = 130,338 dots. • RGB delta color arrangement. • Operating temperature (panel) is -10 to +60°C. Ambient temperature during storage is -20 to +70°C. • Slim design, light weight and narrow frame. (t=0.7mm glass) • Up / down and right / left inverse function. • Built-in level shifter circuit. • Conform to NTSC, PAL when using recommended IC : LV4127W, LV4135W, LV4137W, (LV4139W : Under development). • Anti-reflection (AR) coat. • Panel power consumption is Typ.100mW at NTSC.
