C4696

2SC4696

Sanyo Semicon Device

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	Rochester Electronics LLC	C4696	2SC4696-AN	NPN 0.5A 80V DARLINGTON	DigiKey	7500	1150 units	$0.26	🛒 Buy Now

📥 Download PDF (76.91 KB)

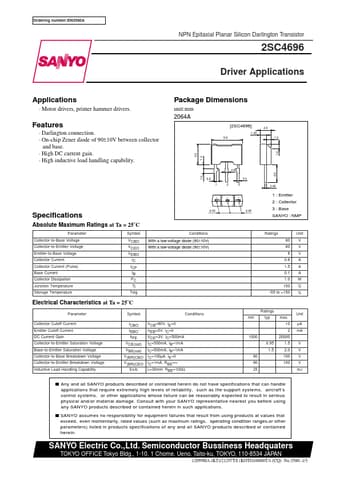

C4696 Datasheet Preview Page 1 — Preview of C4696 Datasheet

Datasheet Details

Part number:

C4696

Manufacturer:

Sanyo Semicon Device

File Size:

76.91 KB

Download:

📄 Download C4696 Datasheet PDF

Description:

2sc4696.
Ordering number:EN3580A NPN Epitaxial Planar Silicon Darlington Transistor 2SC4696 Driver Applicat.
ions Applications * Motor drivers, printer hammer drivers. Package Dimensions unit:mm 2064A [2SC469.

✔ C4696 Features

Darlington connection.
On-chip Zener diode of 90±10V between collector and base.
High DC current gain.
High inductive load handling capability. 4.5 1.0 0.6 1.0

✔ C4696 Application

Applications
Motor drivers, printer hammer drivers. Package Dimensions unit:mm 2064A [2SC4696] 1.45 6.9 1
