D2578 Datasheet - Sanyo Semicon Device

D2578, 2SD2578

www.DataSheet4U.com Ordering number:5794 NPN Triple Diffused Planar Silicon Transistor 2SD2578 Color TV Horizontal Deflection Output Applications Fe.

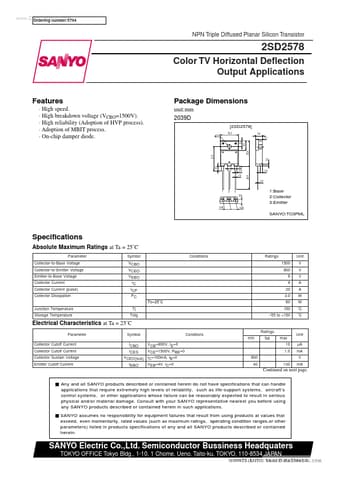

datasheet Preview Page 1 from Datasheet4u.com

D2578_SanyoSemiconDevice.pdf

D2578 Datasheet Preview — Preview of D2578 PDF

Datasheet Details

Part number:

D2578

Manufacturer:

Sanyo Semicon Device

File Size:

79.11 KB

Description:

2SD2578

Features

* High speed.
* High breakdown voltage (VCBO=1500V).
* High reliability (Adoption of HVP process).
* Adoption of MBIT process.
* On-chip damper diode. Package Dimensions unit:mm 2039D [2SD2578] 3.4 16.0 5.6 3.1 5.0 8.0 21.0 22.0 2.8 2.0 4.0 2.0 20.4 1.0 0.6 2.0 1 2 3 1:
