DBC10 1A Single-Phase Bridge Rectifier

Sanyo Semicon Device

DBC10 Description

Ordering number:EN3405 DBC10 Silicon Diffused Junction Type 1A Single-Phase Bridge Rectifier .

DBC10 Features

* Plastic molded structure.
* Peak reverse voltage:VRM=200 to 600V.
* Average rectified current:IO=1.0A. Package Dimensions unit:mm 1241 [DBC10] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Peak Reverse Voltage Average Recitified Current Surge Forward Current Junction

📥 Download Datasheet

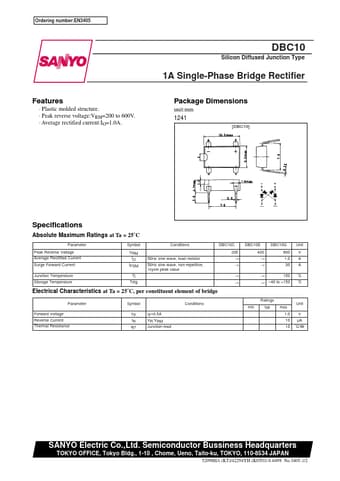

DBC10 Datasheet Preview — Preview of DBC10 PDF

Datasheet Details

Part number: DBC10
Manufacturer: Sanyo Semicon Device
File Size: 37.94 KB
Datasheet: DBC10_SanyoSemiconDevice.pdf
Description: 1A Single-Phase Bridge Rectifier
