DZD5.1 - 0.2W Zener Diodes

Product Overview

Sanyo Semicon Device

Part number	DZD5.1
Manufacturer	Sanyo Semicon Device
File Size	77.17 KB
Description	0.2W Zener Diodes
Datasheet	DZD5.1 Datasheet

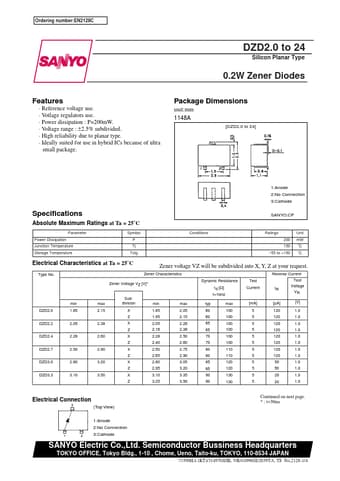

Additional preview pages of the DZD5.1 datasheet.

Reference voltage use.
Votlage regulators use.
Power dissipation : P=200mW.
Voltage range : ±2.5% subdivided.
High reliability due to planar type.
Ideally suited for use in hybrid ICs because of ultra small package. Package Dimensions unit:mm 1148A [DZD2.0 to 24] 1:Anode 2:No Connection 3:Cathode Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Power Dissipation Junction Temperature Storage Temperature Symbol P Tj Tstg Conditions SANYO:CP Ra.
