FP202 - Push-Pull Circuit Applications

Features

  • Composite type with 2 transistors (PNP and NPN) contained in one package facilitating high-density mounting.

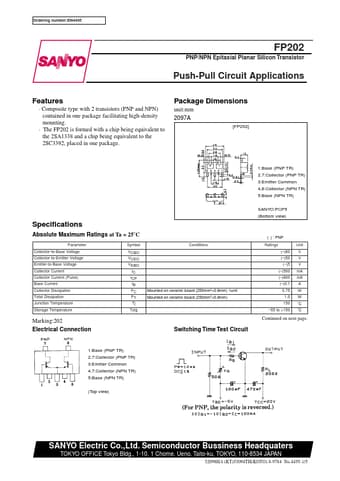

  • The FP202 is formed with a chip being equivalent to the 2SA1338 and a chip being equivalent to the 2SC3392, placed in one package. Package Dimensions unit:mm 2097A [FP202] 1:Base (PNP TR) 2,7:Collector (PNP TR) 3:Emitter Common 4,6:Collector (NPN TR) 5:Base (NPN TR) SANYO:PCP5 (Bottom view) Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Vol.
