LB1801CL - Stepping Motor Driver

Datasheet Summary

Features

  • Low saturation voltage, VO (sat) = 0.3V typ. at IO of 150mA.
  • Built-in through current prevention circuit.
  • Zero current drawn in standby mode.
  • On-chip index comparator (open collector output).
  • On-chip ENA interlocked power supply.
  • Built-in thermal shutdown circuit.
  • ECSP2828-12 ultraminiature leadless package (2.8mm×2.8mm×0.8mm typ) Absolute Maximum Ratings at Ta = 25°C Parameter Maximum power supply voltage Output.

📥 Download Datasheet

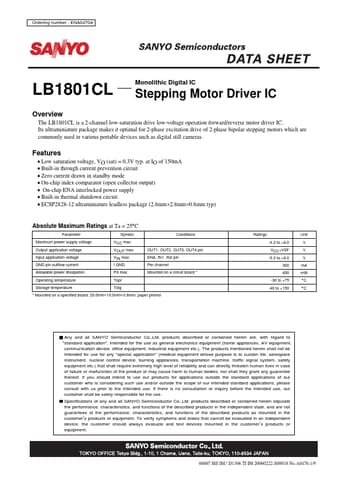

Datasheet preview – LB1801CL

Datasheet Details

Part number LB1801CL
Manufacturer Sanyo Semicon Device
File Size 152.66 KB
Description Stepping Motor Driver
Datasheet download datasheet LB1801CL Datasheet
Additional preview pages of the LB1801CL datasheet.

📁 Similar Datasheet

  • LB1807 - Capstan Motor - 3 Phase Driver (Sanyo)
  • LB1810M - Spindle Motor Driver (Sanyo)
  • LB1813M - Spindle Motor Driver (Sanyo)
  • LB1816 - Optical/magnetic Disk Spindle Motor Driver (Sanyo)
  • LB1817M - FDD Spindle Motor Driver (Sanyo)
  • LB1820 - Office Automation-Use 3-Phase Brushless Motor Driver (Sanyo)
  • LB1821 - Power Brushless Motor Pre-Driver (Sanyo)
  • LB1821M - Power Brushless Motor Pre-Driver (Sanyo)
  • LB1822 - 3-phase Brushless Motor Predriver (Sanyo)
  • LB1823 - Power Brushless Motor Predriver (Sanyo)
Other Datasheets by Sanyo Semicon Device
  • LB1800CL - Stepping Motor Driver
  • LB1806 - LB1806
  • LB1838JM - Low-Saturation Bidirectional Motor Driver
  • LB1867M - 2-phase Brushless Fan Motor Driver
  • LB11600JV - Brushless Motor Predriver IC
  • LB11620GP - Brushless Motor Driver
  • LB11620T - Monolithic Digital IC Brushless Motor Driver
  • LB11650 - PWM Input Forward/Reverse Motor Driver

Full PDF Text Transcription

Click to expand full text
Ordering number : ENA0470A LB1801CL Overview Monolithic Digital IC Stepping Motor Driver IC The LB1801CL is a 2-channel low-saturation drive low-voltage operation forward/reverse motor driver IC. Its ultraminiature package makes it optimal for 2-phase excitation drive of 2-phase bipolar stepping motors which are commonly used in various portable devices such as digital still cameras. Features • Low saturation voltage, VO (sat) = 0.3V typ. at IO of 150mA • Built-in through current prevention circuit • Zero current drawn in standby mode • On-chip index comparator (open collector output) • On-chip ENA interlocked power supply • Built-in thermal shutdown circuit • ECSP2828-12 ultraminiature leadless package (2.8mm×2.8mm×0.
