LC72706E - FM Multiplex Receiver

Description

on page 8.

Number of Allowed BIC Errors This IC’s synchronization circuit operates by recognizing a 16-bit BIC code.

The number of allowed errors is the number of allowed error bits in the 16 bits used for BIC recognition.

Features

  • ard and backward protection counts are set to 3. This IC defines the protection counter value to be 1 at the point where a match or a mismatch occurs between the IC internal timing.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LC72717PW Mobile FM Multiplex Broadcast (DARC) Receiver ON Semiconductor
LC72720YV Single-Chip RDS Signal-Processing System IC ON Semiconductor
LC72720YVS Single-Chip RDS Signal-Processing System IC ON Semiconductor
LC72722PM Single-Chip RDS Signal-Processing System IC ON Semiconductor
LC72722PMS Single-Chip RDS Signal-Processing System IC ON Semiconductor

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LC72700E Mobile FM Multiplex Broadcast Receiver LSI
LC72700G Mobile FM Multiplex Broadcast Receiver LSI
LC72701M Serial Interface Dialler
LC72705E FM Multiplex Receiver
LC72707E FM Multiplex Receiver

Full PDF Text Transcription

Click to expand full text

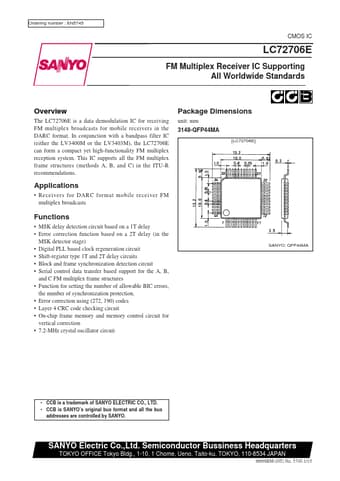

Ordering number : EN5745 CMOS IC LC72706E FM Multiplex Receiver IC Supporting All Worldwide Standards Overview The LC72706E is a data demodulation IC for receiving FM multiplex broadcasts for mobile receivers in the DARC format. In conjunction with a bandpass filter IC (either the LV3400M or the LV3403M), the LC72706E can form a compact yet high-functionality FM multiplex reception system. This IC supports all the FM multiplex frame structures (methods A, B, and C) in the ITU-R recommendations.
