LC74201E - Video CD Decoder

Description

1.

CD-ROM decoder This block takes the MPEG bit stream from the external CD digital signal processor and decodes it in accordance with the CD-ROM standard.

The decoded data is automatically transferred to the next stage, the system decoder.

Features

  • Incorporation of virtually almost all the functionality required by a video CD player from the CD-ROM decoder through to the MPEG audio and video decoders in a single chip.
  • Fully automatic playback with automatic decoding within the LSI in response to simple external commands and the MPEG bit stream.
  • Special playback functions are activated by command inputs, and do not require signal processing by the host microcomputer.
  • Support for two external DRAM configu.

📥 Download Datasheet

Datasheet preview – LC74201E

📁 Similar Datasheet

  • LC74731W - On-Screen Display Controller (ON Semiconductor)
  • LC74732W - On-Screen Display Controller (ON Semiconductor)
  • LC74772V - On-Screen Display LSI (ON Semiconductor)
  • LC74789N - LC74789N / Japanese (Sanyo Semiconductor)
  • LC749000PT-8B15H - LCD Processor LSI (ON Semiconductor)
  • LC74HC00 - Quad 2-Input NAND Gate (Sanyo Semiconductor)
  • LC74HC02 - Quad 2-Input NOR Gate (Sanyo Semiconductor)
  • LC74HC03 - Quad Open Drain 2-Input NAND Gate (Sanyo Semiconductor)
  • LC7.0 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC7.0A - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
Other Datasheets by Sanyo Semicon Device
  • LC74201JE - Single Chip MPEG Decoder
  • LC7410 - CMOS LSI VTR(B/VHS) SERVO CIRCUIT
  • LC7411 - CMOS LSI VTR(B/VHS) SERVO CIRCUIT
  • LC7412 - VTR SERVO DIGITAL CONTROLLER
  • LC7413 - VTR SERVO DIGITAL CONTROLLER
  • LC7415 - CMOS LSI VTR(B/VHS) SERVO CIRCUIT
  • LC74152B - TS+Audio+Video decoder LSI
  • LC74401E - PIP Controllers

Full PDF Text Transcription

Click to expand full text

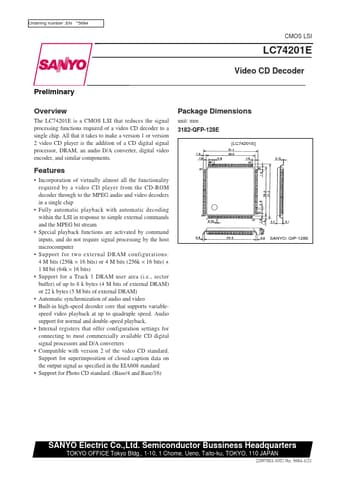

Ordering number :EN *5684 CMOS LSI LC74201E Video CD Decoder Preliminary Overview The LC74201E is a CMOS LSI that reduces the signal processing functions required of a video CD decoder to a single chip. All that it takes to make a version 1 or version 2 video CD player is the addition of a CD digital signal processor, DRAM, an audio D/A converter, digital video encoder, and similar components.
