LC75010W Datasheet - Sanyo Semicon Device

LC75010W Car Audio DSP

Ordering number : ENN7349 CMOS IC LC75010W LC75010W Car Audio DSP Overview The LC75010W is a car audio DSP IC that integrates the signal processing required by car audio systems, A/D and D/A converters, volume control, and other functions on a single chip. It can implement a car audio system with a minimal number of external components. Supply Voltage and Package Specifications DSP core, A/D converter (digital block), D/A converter (digital block): 3.3 V A/D con.

LC75010W Features

* Hardware Functions

* Analog source selector (BTL:1ch, OTL:3 ch)

* 20 bits A/D (2ch)

* 24 bits DSP (core, program memory, data memory)

* SIO (CCB I/F) (CCB is LSB first input.)

* 24 bits D/A (4ch)

* EVR (4ch)

* Software Functions

LC75010W_SanyoSemiconDevice.pdf

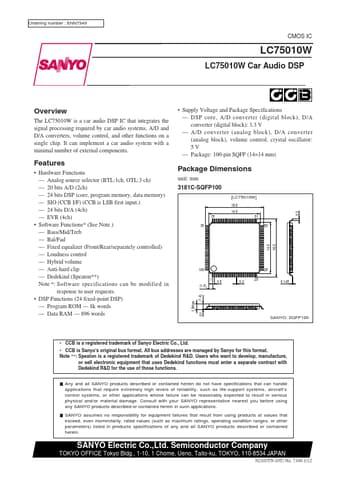

LC75010W Datasheet Preview — Preview of LC75010W PDF

Datasheet Details

Part number:

LC75010W

Manufacturer:

Sanyo Semicon Device

File Size:

128.82 KB

Description:

Car audio dsp.
