LC75342M - Single-Chip Volume and Tone Control

Datasheet Summary

Description

Notes 10 21 LSEL0 RSEL0 Input selector outputs 7 6 24 25 LBASS1 LBASS2 RBASS1 RBASS2

Connections for the resistors and capacitors that form the bass band filters.

Volume control and equalizer input 5 26 LOUT ROUT Volume and equalizer ou

Features

  • On-chip buffer amplifiers minimize the number of external components.
  • Fabricated in a silicon gate CMOS process to minimize switching noise from internal switches.
  • Built-in analog ground reference voltage generation circuit.
  • All controls can be set from serially transferred data. Supports the CCB standard. 2.5max 1 15.3 15 2.15 0.15 0.35 1.0 0.65 0.1 SANYO: MFP30S.
  • CCB is a trademark of SANYO.

📥 Download Datasheet

Datasheet preview – LC75342M

Datasheet Details

Part number LC75342M
Manufacturer Sanyo Semicon Device
File Size 306.08 KB
Description Single-Chip Volume and Tone Control
Datasheet download datasheet LC75342M Datasheet
Additional preview pages of the LC75342M datasheet.

📁 Similar Datasheet

  • LC75344MD - Two-Channel Electronic Volume Controller (ON Semiconductor)
  • LC75345M - Electronic Volume Control System on-Chip (Sanyo Electric)
  • LC75347E - 6-Channel Single-Chip Electronic Volume Control System (Sanyo Electric)
  • LC75348 - Single-Chip Electronic Volume and Tone Control System (Sanyo Electric)
  • LC7534M - (LC7533) 3V Operated Electronic Volume Control (Sanyo Electric)
  • LC7530 - CMOS LSI (Sanyo Semiconductor)
  • LC75384NE-R - Electronic Volume and Tone Controller (Sanyo Semiconductor Corporation)
  • LC75384NW - Electronic Volume and Tone Controller (Sanyo Semiconductor Corporation)
  • LC75 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC7500 - Electronic Volume Controller (Sanyo Electric)
Other Datasheets by Sanyo Semicon Device
  • LC75342 - Single-Chip Volume and Tone Control
  • LC75341 - Single-Chip Volume and Tone Control
  • LC75341M - Single-Chip Volume and Tone Control
  • LC75343M - Electronic Volume Control
  • LC75344M - Two-Channel Electronic Volume Control
  • LC7533 - 3V Electronic Volume Control
  • LC7535M - Electronic Volume/Loudness Control
  • LC7535P - High-voltage/ Two-channel Electronic Attenuator

Full PDF Text Transcription

Click to expand full text

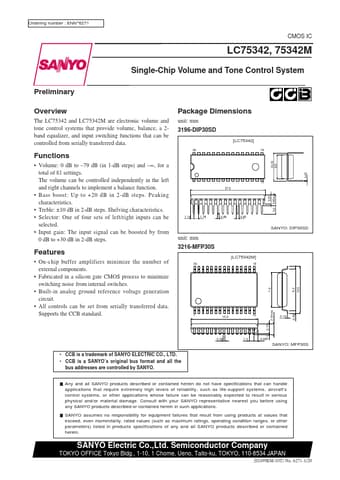

Ordering number : ENN*6271 CMOS IC LC75342, 75342M Single-Chip Volume and Tone Control System Preliminary Overview The LC75342 and LC75342M are electronic volume and tone control systems that provide volume, balance, a 2band equalizer, and input switching functions that can be controlled from serially transferred data. Package Dimensions unit: mm 3196-DIP30SD [LC75342] 30 16 Functions • Volume: 0 dB to –79 dB (in 1-dB steps) and –∞, for a total of 81 settings. The volume can be controlled independently in the left and right channels to implement a balance function. • Bass boost: Up to +20 dB in 2-dB steps. Peaking characteristics. • Treble: ±10 dB in 2-dB steps. Shelving characteristics. • Selector: One of four sets of left/right inputs can be selected.
