LC7537AN

Electronic Volume Control

LC7537AN Features

* Enables controlling the below-listed functions with 3line serial data, including CE, DI, and CLK. Also, due to 0 V to 5 V swing of the serial data input voltage, permits the use of a general purpose microcomputer. Volume : Separately controls the Lch and Rch volume levels across 81 positio

LC7537AN General Description

( Pin No. 12(8) 31(29) 9(4) 34(33) 10(5) 33(32) 11(6) 32(31) 5(47) 38(38) 4(46) 3(45) 39(39) 40(40) 15(11) 16(9) 14(10) 28(26) 27(28) 29(27) 17(13) 16(12) 18(14) 26(24) 27(25) 25(23) 7(1) 6(48) 36(36) 37(37) Symbol L.IN R.IN L.C1 R.C1 L.C2 R.C2 L.OUT R.OUT L.FIN R.FIN L.FOUT L.ROUT R.ROUT R.ROUT L.B.

LC7537AN Datasheet (284.42 KB)

Preview of LC7537AN PDF

Datasheet Details

Part number:

LC7537AN

Manufacturer:

Sanyo Semicon Device

File Size:

284.42 KB

Description:

Electronic volume control.

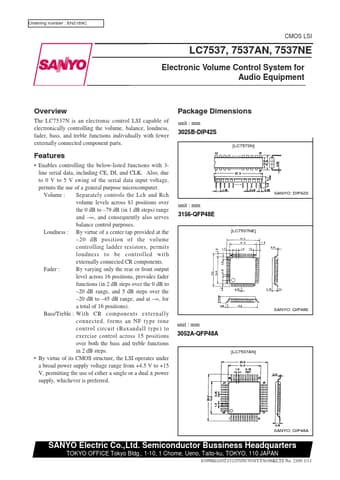

Ordering number : EN2169C CMOS LSI LC7537, 7537AN, 7537NE Electronic Volume Control System for Audio Equipment Overview The LC7537N is an electroni.
