LV5027M Datasheet (Sanyo Semicon Device)

LV5027M, LED Driver IC

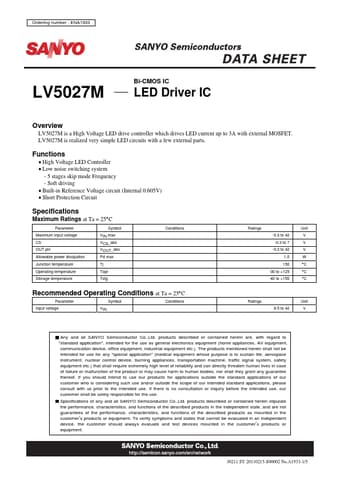

www.DataSheet.co.kr Ordering number : ENA1933 Bi-CMOS IC LV5027M Overview LED Driver IC LV5027M is a High Voltage LED drive controller which drives LED current up to 3A with external MOSFET.

LV5027M is realized very simple LED circuits with a few external parts.

Functions High Voltage LED Controller Low noise switching system - 5 stages skip mode Frequency - Soft driving Built-in Reference Voltage circuit (Internal 0.605V) Short Protection Circuit
