LV5233H

24ch LED Driver

Sanyo Semicon Device

LV5233H Features

* a CMOS structure based on Bi-CMOS process technology. The LV5233H also contains an n-channel CMOS construction high-withstand-voltage, large-current drive 24-stage parallel output driver. The protection circuit of the output malfunction is built into. Features

* Serial input and serial or p

LV5233H General Description

Pin No. 1 2 3 4 5 6 7 8 9 Heat sink 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 Heat sink 28 29 30 31 32 33 34 35 LEDO18 LEDO17 LEDO16 PGND3 LEDO15 LEDO14 LEDO13 LATCH O O O I O O O LEDO18 Latch output (LEDO18 of shift register) LEDO17 Latch output (LEDO17 of shift register) LEDO16 Latch .

LV5233H Datasheet (256.38 KB)

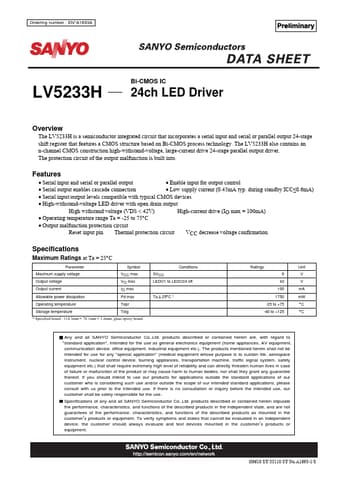

LV5233H Datasheet Preview — Preview of LV5233H PDF

Datasheet Details

Part number:

LV5233H

Manufacturer:

Sanyo Semicon Device

File Size:

256.38 KB

Description:

24ch led driver.
www.DataSheet.co.kr Ordering number : EN
*A1693A Bi-CMOS IC LV5233H Overview 24ch LED Driver The LV5233H is a semiconductor integrated circuit.
