SB10-015C - 15V/ 1A Rectifier

SB10-015C Description

Ordering number : EN4436A Schottky Barrier Diode SB10-015C 15V, 1A Rectifier Applications * High frequency rectification (switching regulat.

SB10-015C Features

* Low forward voltage (VF max=0.55V).
* Fast reverse recovery time (trr max=10ns).
* Low switching noise
* Low leakage current and high reliability due to highly reliable planar structure.
* Small-sized package permitting SB10-015C-applied sets to be compact a

📥 Download Datasheet

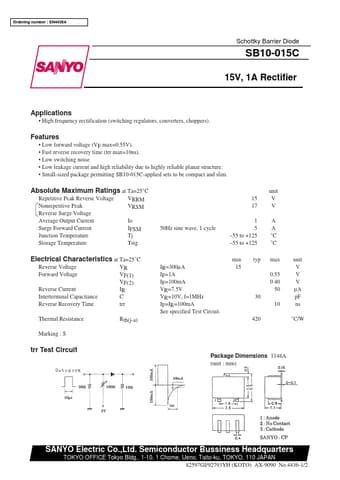

Preview of SB10-015C PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB10-015C
Manufacturer
Sanyo Semicon Device
File Size
100.30 KB
Datasheet
SB10-015C_SanyoSemiconDevice.pdf
Description
15V/ 1A Rectifier
