SB120-05R - 50V/ 12A Rectifier

Features

Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=70ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure.
Micaless package facilitating easy mounting. A:Anode C:Cathode SANYO:TO-3PB Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Non-repetitive Peak Reverse Surge Voltage Average Output Current Surege Forward Current Junction Temperature Storag.

Sanyo Semicon Device

Datasheet Details

Part number	SB120-05R
Manufacturer	Sanyo Semicon Device
File Size	81.43 KB
Description	50V/ 12A Rectifier
Datasheet	SB120-05R Datasheet
Additional preview pages of the SB120-05R datasheet.

📁 Similar Datasheet

SB120-G - Leaded Schottky Barrier Rectifiers (Comchip)
SB120 - 1 AMPERE SCHOTTKY BARRIER RECTIFIERS (Pan Jit International Inc.)
SB120 - 1.0A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
SB120 - SCHOTTKY BARRIER RECTIFIER (GOOD-ARK Electronics)
SB120 - SCHOTTKY BARRIER RECTIFIER (ZOWIE)
SB120 - 1.0A SCHOTTKY BARRIER RECTIFIER (SANGDEST MICROELECTRONICS)
SB120 - SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
SB120 - Schottky Barrier Plastic Rectifier (Vishay)
SB120 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC)
SB120 - Schottky Rectifiers (Fairchild Semiconductor)

Other Datasheets by Sanyo Semicon Device

SB120-05H - 40V/ 1.1A Rectifier
SB120-18 - 180V/ 12A Rectifier
SB10-015C - 15V/ 1A Rectifier
SB10-015P - 15V/ 1A Rectifier
SB10-03A2 - 30V/ 1.0A Rectifier
SB10-03A3 - 30V/ 1.0A Rectifier
SB10-04A3 - 40V/ 1.0A Rectifier
SB10-05 - 50V/ 1A Rectifier

Full PDF Text Transcription

Click to expand full text

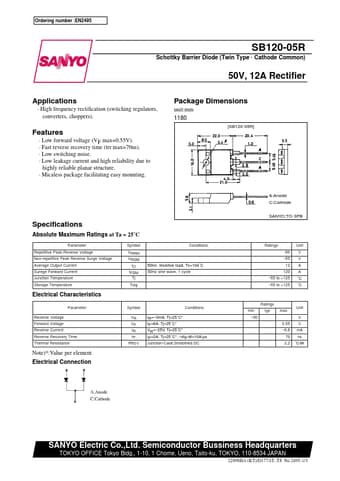

Ordering number :EN2495 SB120-05R Schottky Barrier Diode (Twin Type · Cathode Common) 50V, 12A Rectifier Applications · High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1180 [SB120-05R] Features · Low forward voltage (VF max=0.55V). · Fast reverse recovery time (trr max=70ns). · Low switching noise. · Low leakage current and high reliability due to highly reliable planar structure. · Micaless package facilitating easy mounting.
