SB20-05 - 50V/ 2A Rectifier

Product Overview

Sanyo Semicon Device

Part number	SB20-05
Manufacturer	Sanyo Semicon Device
File Size	77.11 KB
Description	50V/ 2A Rectifier
Datasheet	SB20-05 Datasheet

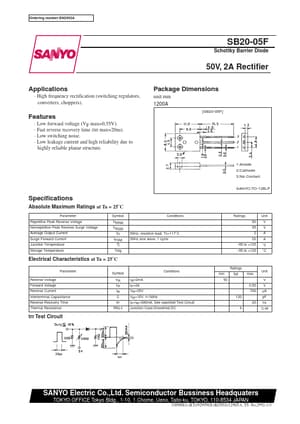

Additional preview pages of the SB20-05 datasheet.

Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=20ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. 1:Anode 2:Cathode 3:No Contact SANYO:TO-126LP Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM.
