SB20-18 - 80V/ 2A Rectifier

Product Overview

Sanyo Semicon Device

Part number	SB20-18
Manufacturer	Sanyo Semicon Device
File Size	81.21 KB
Description	80V/ 2A Rectifier
Datasheet	SB20-18 Datasheet

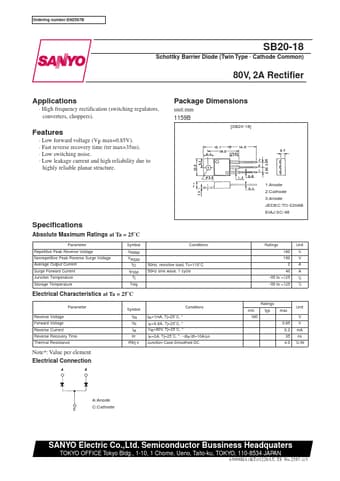

Additional preview pages of the SB20-18 datasheet.

Low forward voltage (VF max=0.85V).
Fast reverse recovery time (trr max=35ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. 1:Anode 2:Cathode 3:Anode JEDEC:TO-220AB EIAJ:SC-46 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO.
