SB40-03T - 30V/ 4A Rectifier

Sanyo Semicon Device

📥 Download Datasheet

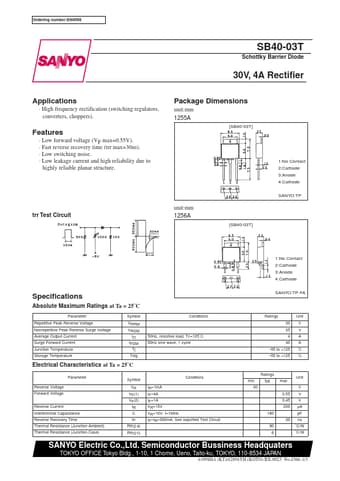

SB40-03T Datasheet Preview — Preview of SB40-03T PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB40-03T
Manufacturer	Sanyo Semicon Device
File Size	81.17 KB
Description	30V/ 4A Rectifier
Datasheet	SB40-03T_SanyoSemiconDevice.pdf

SB40-03T Product details

Features

Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=30ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. 1:No Contact 2:Cathode 3:Anode 4:Cathode SANYO:TP trr Test Circuit unit:mm 1256A [SB40-03T] 1:No Contact 2:Cathode 3:Anode 4:Cathode SANYO:TP-FA Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average.
