STK415-090-E Datasheet - Sanyo Semicon Device

2-Channel Power Switching Audio Power IC

STK415-090-E Features

* a built-in power supply switching circuit. This IC provides high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power devices according to the detected level of the input audio signal. Applications

* Audio power amplifiers. Features

STK415-090-E General Description

Determine the current flowing into the power switching circuit (comparator), (3mA to 10mA at VH power switching) R03, R04 R05, R06 R08, R09 R11, R12 R14,R15 100Ω/1W 56kΩ 4.7Ω/1W 4.7Ω 560Ω Ripple filtering resistors (Used with C05 and C06 to form a ripple filter.) Input bias resistors (Virtually dete.

STK415-090-E Datasheet (210.08 KB)

Preview of STK415-090-E PDF

Datasheet Details

Part number:

STK415-090-E

Manufacturer:

Sanyo Semicon Device

File Size:

210.08 KB

Description:

2-channel power switching audio power ic.
Ordering number : EN A1246A www.DataSheet4U.com Thick-Film Hybrid IC STK415-090-E Overview 2-Channel Power Switching Audio Power IC, 50W+50W .

📁 Related Datasheet

STK415-100-E 2-Channel Power Switching Audio Power IC (Sanyo Semicon Device)

STK415-120-E 2-Channel Power Switching Audio Power IC (Sanyo Semicon Device)

STK415-130-E 2-Channel Power Switching Audio Power IC (Sanyo Semicon Device)

STK415-140-E 2-Channel Power Switching Audio Power IC (Sanyo Semicon Device)

STK4150MK5 (STK4100MK5 Series) STK Audio Power Amplifier (Sanyo Semicon Device)

STK4151II (STK4101 II Series) 2-CHANNEL AF POWER AMP (ETC)

STK4151V AF Power Amplifier (Sanyo)

STK4152II AF Power Amplifier (Sanyo)

STK4154MK2 (STK4144MK2 Series) Audio Power Amplifier (Sanyo)

STK4100MK5 (STK4100MK5 Series) STK Audio Power Amplifier (Sanyo Semicon Device)

TAGS

STK415-090-E 2-Channel Power Switching Audio Power Sanyo Semicon Device

Image Gallery

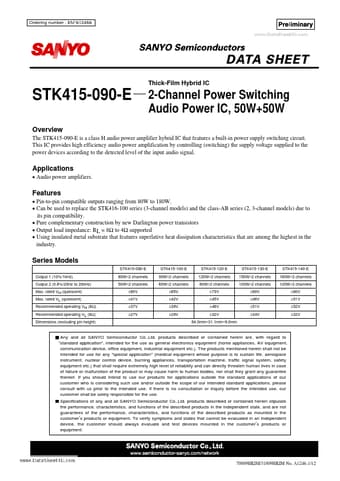

STK415-090-E Datasheet Preview Page 2 STK415-090-E Datasheet Preview Page 3
