SVC348 - AM Low Voltage Electronic Tuning Applications

Product Overview

Sanyo Semicon Device

Part number	SVC348
Manufacturer	Sanyo Semicon Device
File Size	49.58 KB
Description	AM Low Voltage Electronic Tuning Applications
Datasheet	SVC348 Datasheet

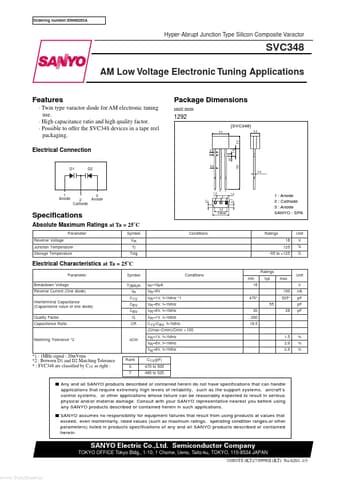

Additional preview pages of the SVC348 datasheet.

Twin type varactor diode for AM electronic tuning use.
High capacitance ratio and high quality factor.
Possible to offer the SVC348 devices in a tape reel packaging. Electrical Connection D1 D2 Package Dimensions unit:mm 1292 [SVC348] 4.0 2.2 0.4 0.5 0.6 0.4 1.8 15.0 3.0 0.4 0.7 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Reverse Voltage Junction Temperature Storage Temperature Symbol VR Tj Tstg Conditions 3.0 3.8nom 0.7 1 Anode 2 Cathode 3 Anode.
