LA7267M Hi-Fi Signal Processing

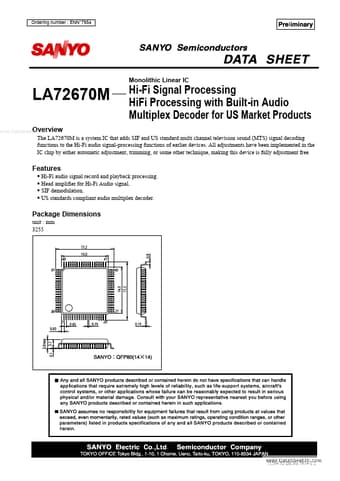

Ordering number : ENN 7954 Monolithic Linear IC LA72670M Overview www.DataSheet4U.com Hi-Fi Signal Processing HiFi Processing with Built-in Audio Multiplex Decoder for US Market Products The LA72670M is a system IC that adds SIF and US standard multi channel television sound (MTS) signal decoding functions to the Hi-Fi audio signal-processing functions of earlier devices. All adjustments have been implemented in the IC chip by either automatic adjustment, trimming, or some other techniqu.

LA7267M Features

* Hi-Fi audio signal record and playback processing.

* Head amplifier for Hi-Fi Audio signal.

* SIF demodulation.

* US standards compliant audio multiplex decoder. Package Dimensions unit : mm 3255 71504 JO IM No.7954-1/2 LA72670M Block Diagram www.DataSheet4U.com
