103H7852-7021 Datasheet - Sanyo

103H7852-7021 5-phase stepping motor

5-phase stepping motor (0.72) 5-phase stepping motor 60 103H785 mm sq. 0.72˚/step Applicable drivers PMAPA 1S6B01 PMM-MA 50034 PMM-MA 50064 PMM-BA 5603 5643 PMM-BA 5604 5644 PMDPB1S6P01 PMDPC1S3P01 PMM-MD-53030 PMM-MD-53031 PMM-BD-53130 PMM-BD-53131 PMDPA1C3P50 Specifications Model number Holding torque at 5-phase energization Rated current resistance inductance Single shaft Double shaft N.m(oz.in) MIN. A/phase Ω/phase mH/phase 103H7851-7051 -7021 0.65(92.0) 0.75 2.75 4.75.

103H7852-7021 Datasheet (546.38 KB)

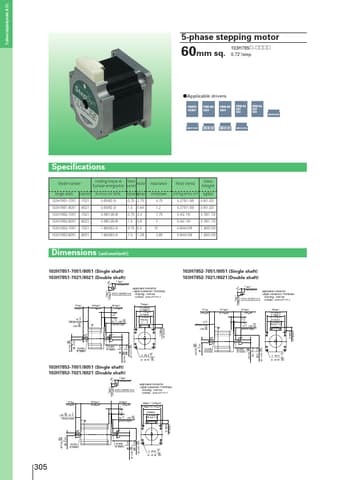

103H7852-7021 Datasheet Preview — Preview of 103H7852-7021 PDF

Datasheet Details

Part number:

103H7852-7021

Manufacturer:

Sanyo

File Size:

546.38 KB

Description:

5-phase stepping motor.
