A1524, 2SA1524

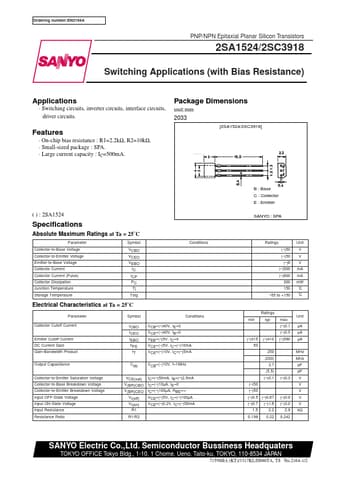

Ordering number:EN2164A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1524/2SC3918 Switching Applications (with Bias Resistance) Applications .

datasheet Preview Page 1 from Datasheet4u.com

A1524-Sanyo.pdf

A1524 Datasheet Preview — Preview of A1524 PDF

Datasheet Details

Part number:

A1524

Manufacturer:

Sanyo

File Size:

42.91 KB

Description:

2SA1524

Features

* On-chip bias resistance : R1=2.2kΩ, R2=10kΩ.
* Small-sized package : SPA.
* Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1524/2SC3918] ( ) : 2SA1524 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitt

Applications

* (with Bias Resistance) Applications
