A1777

2SA1777

A1777 Features

* High fT : fT=400MHz (typ).

* High breakdown voltage : VCEO≥250V(min).

* High current.

* Small reverse transfer capacitance and excellent high-frequnecy characteristic : Cre=3.4pF (NPN), 4.2pF (PNP).

* Complementary pair with the 2SA1777/2SC4623.

* Adoption of FBET process.

A1777 Datasheet (125.57 KB)

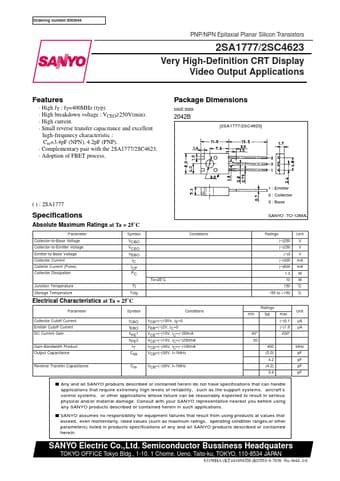

Preview of A1777 PDF

Datasheet Details

Part number:

A1777

Manufacturer:

Sanyo

File Size:

125.57 KB

Description:

2sa1777.
Ordering number:EN3644 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1777/2SC4623 Very High-Definition CRT Display Video Output Applications Featu.
