A2025 - 2SA2025

Product Overview

Sanyo

Part number	A2025
Manufacturer	Sanyo
File Size	37.17 KB
Description	2SA2025
Datasheet	A2025 Datasheet

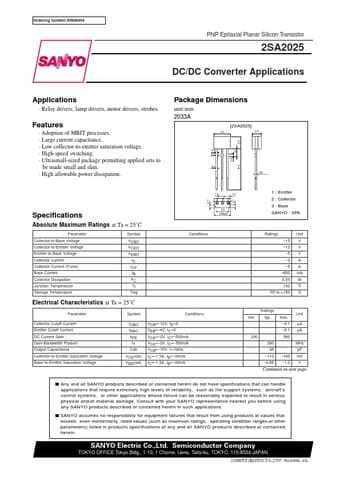

Additional preview pages of the A2025 datasheet.

Adoption of MBIT processes.
Large current capacitance.
Low collector-to-emitter saturation voltage.
High-speed switching.
Ultrasmall-sized package permitting applied sets to be made small and slim.
High allowable power dissipation. Package Dimensions unit:mm 2033A [2SA2025] 4.0 2.2 0.4 0.5 0.4 0.4 0.6 1.8 15.0 3.0 123 1.3 1.3 0.7 0.7 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emi.
