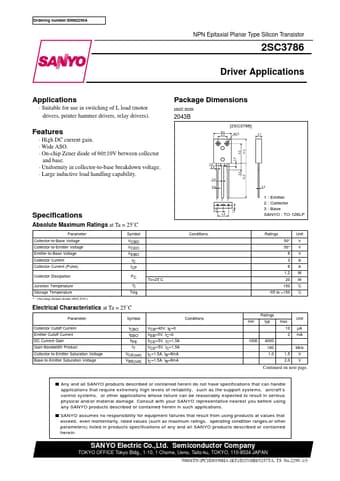

C3786 Datasheet, 2sc3786, Sanyo

C3786 Features

• 2sc3786
• High DC current gain.
• Wide ASO.
• On-chip Zener diode of 60±10V between collector and base.
• Uniformity in collector-to-base breakdown voltage.

PDF File Details

Part number:

C3786

Manufacturer:

Sanyo

File Size:

33.36kb

Download:

📄 Datasheet

Description:

2sc3786.

C3786 Application

• Applications Applications
• Suitable for use in switching of L load (motor drivers, printer hammer drivers, relay drivers). Features
<
