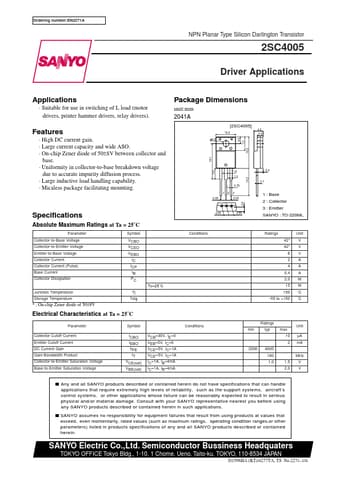

Ordering number:EN2271A NPN Planar Type Silicon Darlington Transistor 2SC4005 Driver Applications Applications · Suitable for use in switching of L load (motor drivers, p...
View more extracted text
plications · Suitable for use in switching of L load (motor drivers, printer hammer drivers, relay drivers). Package Dimensions unit:mm 2041A Features · High DC current gain. · Large current capacity and wide ASO. · On-chip Zener diode of 50±8V between collector and base. · Uniformity in collector-to-base breakdown voltage due to accurate impurity diffusion process. · Large inductive load handling capability. · Micaless package facilitating mounting. Specifications 18.1 5.6 [2SC4005] 4.5 10.0 2.8 3.2 3.5 7.2 16.0 1.6 1.2 0.75 123 2.55 2.55 2.55 2.55 2.4 14.0 2.4 0.
