C4119 - 2SC4119

Key Features

  • High speed (adoption of MBIT process).
  • High breakdown voltage (VCBO=1500V).
  • On-chip damper diode.
  • High reliability. NPN Triple Diffused Planar Silicon Darlington Transistor 2SC4119 800V/15A Driver.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C4111 Power Transistors Panasonic Semiconductor
C4112 Transistor ETC
C4115 2SC4115 Jiangsu
C4115E 2SC4115E Jiangsu Changjiang Electronics
C4115S 2SC4115S Jiangsu Changjiang Electronics

Other Datasheets by SANYO (now Panasonic)

Part Number Description
C4110 2SC4110
C4113 2SC4113
C4104 2SC4104
C4105 2SC4105
C4107 2SC4107

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

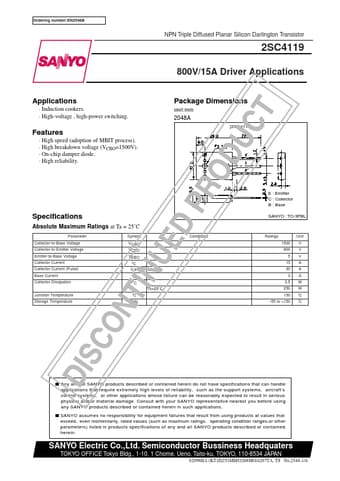

Ordering number:EN2548B Applications · Induction cookers. · High-voltage , high-power switching. Features · High speed (adoption of MBIT process). · High breakdown voltage (VCBO=1500V). · On-chip damper diode. · High reliability. NPN Triple Diffused Planar Silicon Darlington Transistor 2SC4119 800V/15A Driver Applications Package Dimensions unit:mm 2048A [2SC4119] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Votlage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Tc=25˚C Conditions E : Emitter C : Collector B : Base SANYO : TO-3PBL Ratings 1500 800 5 15 30 3 3.
