C4450 2SC4450

C4450 Description

Ordering number:EN3101 NPN Triple Diffused Planar Silicon Transistor 2SC4450 1500V/5mA High-Voltage Amplifier, High-Voltage Switching Applications F.

C4450 Features

* High breakdown voltage.
* Small Cob.
* Wide ASO.
* High reliability (Adoption of HVP process). Package Dimensions unit:mm 2010C [2SC4450] 10.2 3.6 5.1 4.5 1.3 2.7 6.3 15.1 18.0 5.6 1.2 2.7 14.0 0.8 123 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Co

📥 Download Datasheet

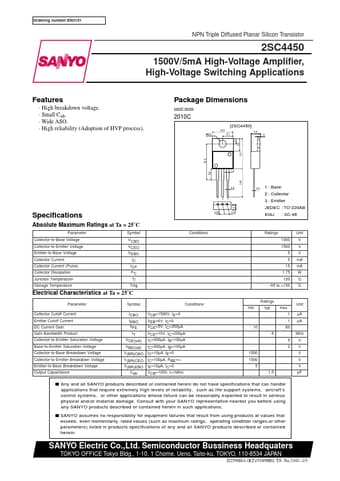

Preview of C4450 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4450
Manufacturer
Sanyo
File Size
84.35 KB
Datasheet
C4450-Sanyo.pdf
Description
2SC4450
