C4520 - 2SC4520

C4520 Description

Ordering number:EN3139 NPN Epitaxial Planar Silicon Transistors 2SC4520 High-Speed Switching Applications .

C4520 Features

* Adoption of FBET, MBIT process.
* Large current capacity.
* Low collector-to-emitter saturation voltage.
* Fast switching speed.
* Small-sized package. Package Dimensions unit:mm 2038A [2SC4520] 4.5 1.6 1.5 1.0 2.5 4.25max 0.4 0.5 32 1.5 1 3.0 0.75 Specifications Abso

📥 Download Datasheet

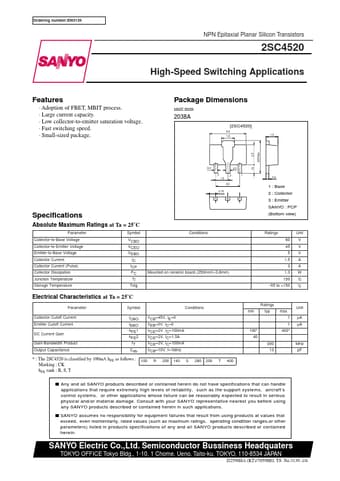

Preview of C4520 PDF
