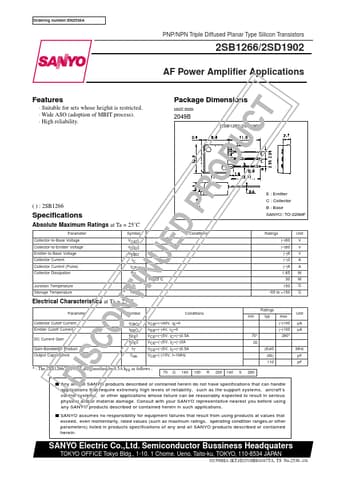

D1902
Features
- Suitable for sets whose heighit is restricted.
- Wide ASO (adoption of MBIT process).
- High reliability.
Package Dimensions unit:mm 2049B
[2SB1266/2SD1902]
( ) : 2SB1266
Specifications
E : Emitter C : Collector B : Base SANYO : TO-220MF
Absolute Maximum Ratings at Ta = 25˚C
Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation
Junction Temperature Storage Temperature
Symbol VCBO VCEO VEBO
IC ICP PC
Tj Tstg
Tc=25˚C
Conditions
Ratings (- )60 (- )60 (- )6 (- )3 (- )8 1.65 30 150
- 55 to +150
Unit V V V A A W W ˚C ˚C
Electrical Characteristics at Ta = 25˚C
Parameter
Symbol
Conditions
Ratings min typ max
Unit
Collector Cutoff Current Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product Output Capacitance
ICBO IEBO h FE1 h FE2 f T Cob
VCB=(- )40V, IE=0 VEB=(- )4V, IC=0 VCE=(- )5V, IC=(- )0.5A VCE=(- )5V, IC=(- )3A VCE=(- )5V, IC=(- )0.5A VCB=(- )10V, f=1MHz
(- )100...
