LA1260 - FM/AM Tuner System

Datasheet Summary

Features

  • Minimum number of external parts required (No AM detection coil required).
  • High S/N : FM 81dB AM 53dB.
  • Low-level AM oscillator with ALC : Pin 16 OSC output MW 130mV SW 70 mV to 90 mV (7MHz) (24MHz).
  • Less AM whistle interference : Whistle 1% at input 100dB/m.
  • On-chip LED tuning indicator driver.
  • On-chip FM/AM selector.
  • Independent FM/AM output pins : Possible to set FM/AM frequency characteristic independently. SANYO : DIP16 Sp.

📥 Download Datasheet

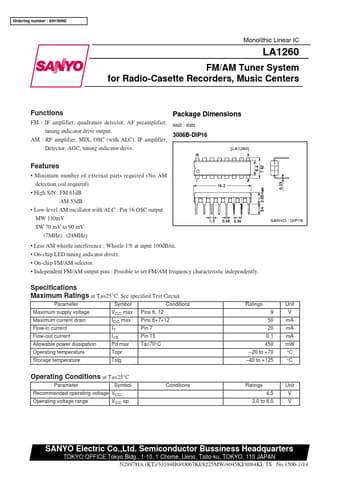

Datasheet preview – LA1260

Datasheet Details

Part number LA1260
Manufacturer Sanyo
File Size 919.63 KB
Description FM/AM Tuner System
Datasheet download datasheet LA1260 Datasheet
Additional preview pages of the LA1260 datasheet.

📁 Similar Datasheet

  • LA1261 - FM / AM ELECTRONIC TUNING (Sanyo Semiconductor Corporation)
  • LA1201 - FM / AM IF (Sanyo Semiconductor)
  • LA1205 - monolithic linear (ETC)
  • LA120X - Semiconductor Fuses (Littelfuse)
  • LA1210 - FM / AM IF (Sanyo Semiconductor)
  • LA1222 - FM IF (Sanyo Semiconductor)
  • LA1225MC - FM IF Detector IC (ON Semiconductor)
  • LA1230 - FM IF System (Sanyo Semiconductor)
  • LA100-TP - Current Transducer (LEM)
  • LA1111P - FM IF (Sanyo Semiconductor Corporation)
Other Datasheets by Sanyo
  • LA1265 - Monolithic Linear IC
  • LA1266 - AM/FM Tuner System Of Electronic Tuning Type Monolithic Linear
  • LA1230 - FM IF
  • LA1235 - Monolithic Linear IC
  • LA1245 - AM Electronic Tuner
  • LA1247 - AM Electronic Tuner
  • LA1270 - 3V FM / AM IF Amplifier
  • LA1135 - Car Radios/Home Stereos

Full PDF Text Transcription

Click to expand full text
Ordering number : EN1506D Monolithic Linear IC LA1260 FM/AM Tuner System for Radio-Casette Recorders, Music Centers Functions FM : IF amplifier, quadrature detector, AF preamplifier, tuning indicator drive output. AM : RF amplifier, MIX, OSC (with ALC), IF amplifier, Detector, AGC, tuning indicator drive. Package Dimensions unit : mm 3006B-DIP16 [LA1260] Features • Minimum number of external parts required (No AM detection coil required). • High S/N : FM 81dB AM 53dB • Low-level AM oscillator with ALC : Pin 16 OSC output MW 130mV SW 70 mV to 90 mV (7MHz) (24MHz) • Less AM whistle interference : Whistle 1% at input 100dB/m. • On-chip LED tuning indicator driver. • On-chip FM/AM selector. • Independent FM/AM output pins : Possible to set FM/AM frequency characteristic independently.
