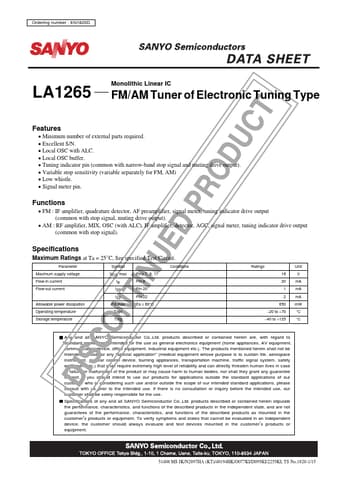

LA1265 - Monolithic Linear IC

Features

  • Minimum number of external parts required.
  • Excellent S/N.
  • Local OSC with ALC.
  • Local OSC buffer.
  • Tuning indicator pin (common with narrow-band stop signal and muting drive output).
  • Variable stop sensitivity (variable separately for FM, AM).
  • Low whistle.
  • Signal meter pin. Functions.
  • FM : IF amplifier, quadrature detector, AF preamplifier, signal meter, tuning indicator drive output (common with stop signal, mu.
